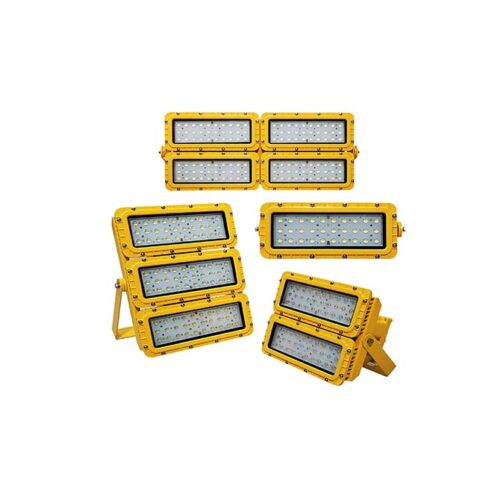

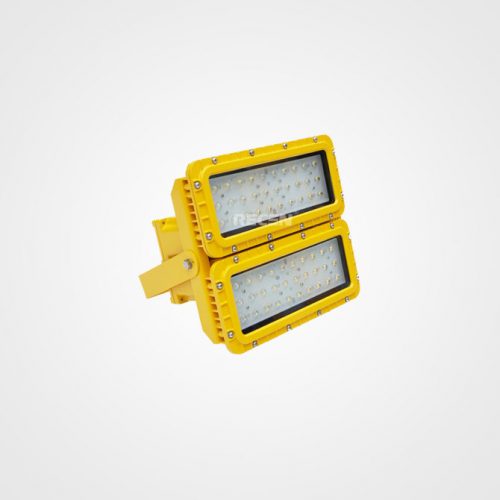

RFBL172 Led Explosion Proof Flood Light

RFBL172 Led Explosion Proof Flood Light

Enclosure is Die Casted of High-Strength Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

Explosion Protection:  Ex de mb IIC T6 Gb/Ex tD A21 IP66 T80℃

Rated Power: 150-200-300W

Ingress Protection: IP66;

SKU: LEXL-13 Categories: , ,

RFBL172 Led Explosion Proof Flood Light

Designed for explosive atmospheres Zone 1 and Zone 2;

Designed for combustible dust Zone 21 and Zone 22;

Designed for IIA , IIB and  groups explosive atmospheres;

Designed for places with high quality requirements and humidity.

Designed for explosive hazardous locations such as oil refinery, storage, chemical, pharmaceutical, Petrochemical,  power plan, military industries, etc.

Good for used as out door or indoor lighting.

Application & Model Code

RFBL172 Led Explosion Proof Flood Light

Rated Power: 150W-200W-300W

Enclosure is Die Casted of High-Strength Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

LED Light Source Use International Famous Brand Chip.

The Special Constant Current Power Supply with High Efficiency, Low Power Consumption and Constant Output Power, and Features of Short Circuit, Open Circuit and Overheating Protection Ensures That LED Lamp Working Reliably, High-Light Effect, Energy Saving and Long Service Life;

Adopt Integral Structure, and Divided into the Design of Structure of Lamp Cavity, Electric Cavity and Wiring Cavity. Lamp Cavity is Completely Separated from Electric Cavity.

Structure of Special Heat Dissipation in the Middle Ensures That the Heat Generated from Lamp and Power Gives Out;

The Wiring Board is of New Design. The Wire Shall be Accessed to the Wiring Board in Horizontal Direction and Fastened by Bolts in Vertical Direction When Installing, Which an Avoid Shedding During Long-Time Service Period;

Transparent Covers are Made of Toughened Glass with Functions of High Temperature Resistance and Heat Resistance. The Prismatic Anti-Glare Design Can Effectively Reduce Glare;

The Light Fittings Adopt Explosion Protection Structure of Thread, Spigot and Cementing with Good Explosion Protection Performance, Which Meet the Requirements of IIC;

Each Joint of Light Fittings is with Sealing Structure, Sealing Rings are Made of Silicone Rubber , Which Has Features of High Temperature Resistance and Anti-Aging.

The Ingress Protection of Enclosure is IP66;

Enclosure Adopts High Voltage Electrostatic Powder Coated Surface After Shot Blasting and Chemical Treatment, and the Corrosion Resistance Reaches to WF2;

Features

Enclosure is Die Casted of High-Strength Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

LED Light Source Use International Famous Brand Chip.

The Special Constant Current Power Supply with High Efficiency, Low Power Consumption and Constant Output Power, and Features of Short Circuit, Open Circuit and Overheating Protection Ensures That LED Lamp Working Reliably, High-Light Effect, Energy Saving and Long Service Life;

Adopt Integral Structure, and Divided into the Design of Structure of Lamp Cavity, Electric Cavity and Wiring Cavity. Lamp Cavity is Completely Separated from Electric Cavity.

Structure of Special Heat Dissipation in the Middle Ensures That the Heat Generated from Lamp and Power Gives Out;

The Wiring Board is of New Design. The Wire Shall be Accessed to the Wiring Board in Horizontal Direction and Fastened by Bolts in Vertical Direction When Installing, Which an Avoid Shedding During Long-Time Service Period;

Transparent Covers are Made of Toughened Glass with Functions of High Temperature Resistance and Heat Resistance. The Prismatic Anti-Glare Design Can Effectively Reduce Glare;

The Light Fittings Adopt Explosion Protection Structure of Thread, Spigot and Cementing with Good Explosion Protection Performance, Which Meet the Requirements of IIC;

Each Joint of Light Fittings is with Sealing Structure, Sealing Rings are Made of Silicone Rubber , Which Has Features of High Temperature Resistance and Anti-Aging.

The Ingress Protection of Enclosure is IP66;

Enclosure Adopts High Voltage Electrostatic Powder Coated Surface After Shot Blasting and Chemical Treatment, and the Corrosion Resistance Reaches to WF2;

Emergency Function is Available as Per Request.

Technical Parameters

Compliance With:  GB3836.1、GB3836.2、GB3836.3、GB3836.9、GB12476.1、GB12476.5

Explosion Protection:  Ex de mb IIC T6 Gb/Ex tD A21 IP66 T80℃

Working Voltage: AC90~264V, 50/60Hz

Rated Power: 150W-300W

Luminous Efficiency: ≥110lm/W;

Power Factor: >0.95;

Color Temperature: 5500K~6500K

Color Rendering Index: Ra>75;

Ingress Protection: IP66;

Corrosion Resistance: WF2;

Ambient Temperature: -40℃≤Ta≤+40℃

Cable Entry: G3/4″;

Cable Outer Diameters: 8mm~Φ14mm

Size: 435×429×261
